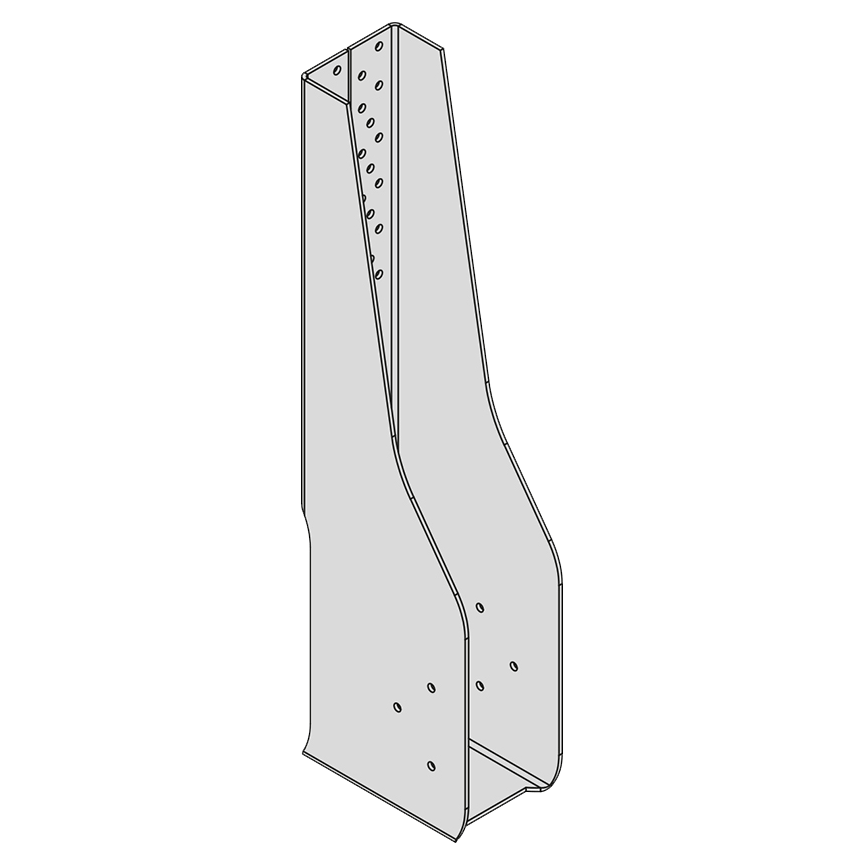

Cullen HGG Heavy Girder to Girder Hanger
Cullen HGG Heavy Girder to Girder Hanger
Regular price
£120.00
Regular price
Sale price
£120.00
Unit price
/
per
Weight:
0.0 kg
SKU:HGG-80
Couldn't load pickup availability
The HGG hanger is designed to support multiple ply girder trusses from a vertical web in high load situations.
- New and improved design using PSTS screws simplifies the installation
- Allows fixings into vertical web only
- Additional side fixings allows for greater uplift capacity
| Hanger Width | Truss Width | Min Header Width | Hanger Depth/Height |
| 80mm | 35mm | 97mm | 519mm |
| 102mm | 47mm | 122mm | 508mm |
| 153mm | 47mm | 147mm | 542mm |
| 200mm | 47mm | 197mm | 519mm |
